About This

  • Tube OD: 1-1/2 Inch, Ferrule Size: 50.5MM, Fits 1.5 Inch Tri-clamp
  • Material: SAE 304 Stainless Steel，Max Temperature：130°C，Max Pressure: 10 Bar (145 PSI)

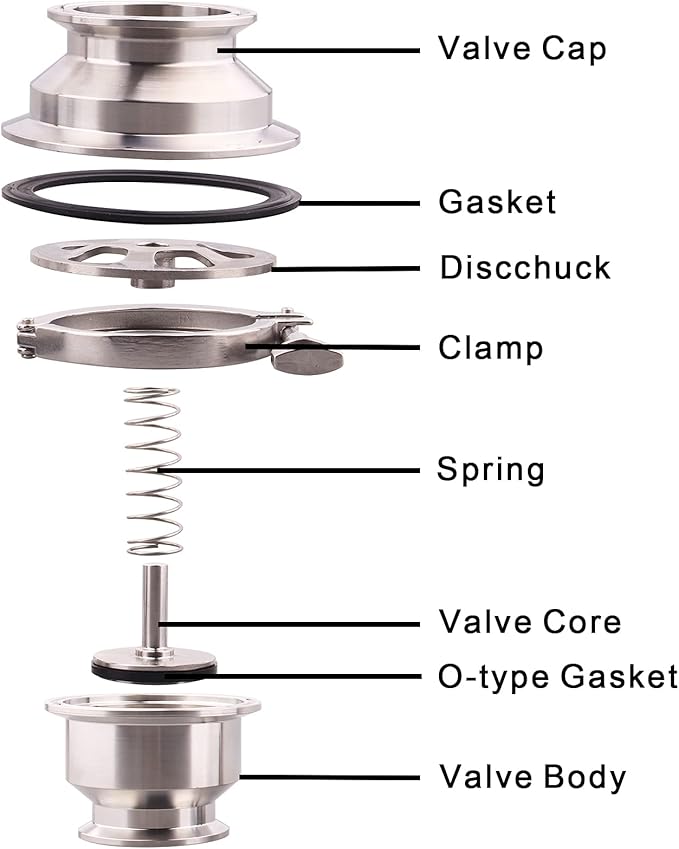

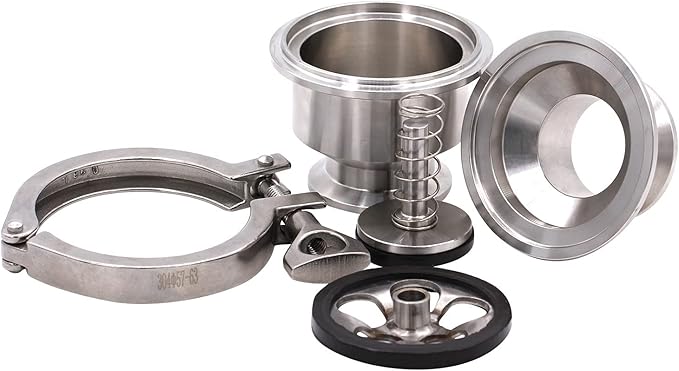

  • Adjustable pressure via spring replacement (1 spring included)- Quickly comes apart for easy cleaning
  • This one-way check valve allows flow in only one direction. When flow stops the valve automatically closes to stop materials from back-flowing
  • The pressure required to open the valve and be adjust by swapping out the inner spring (only one spring included) or rotating the spring plate

Overview

  • Material : Stainless Steel
  • Brand : DERNORD
  • Exterior Finish : Polished,Stainless,Stainless Steel
  • Inlet Connection Size : 1.5 Inches
  • Inlet Connection Type : Tri Clamp
  • Maximum Operating Pressure : 145 Pound per Square Inch
  • Number of Ports : 2
  • Manufacturer : DERNORD
  • UPC : 689771291864
