About This

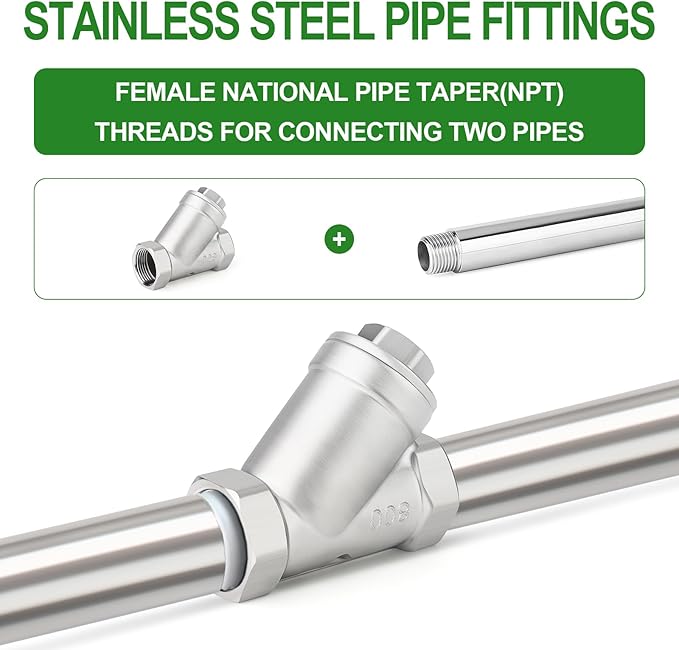

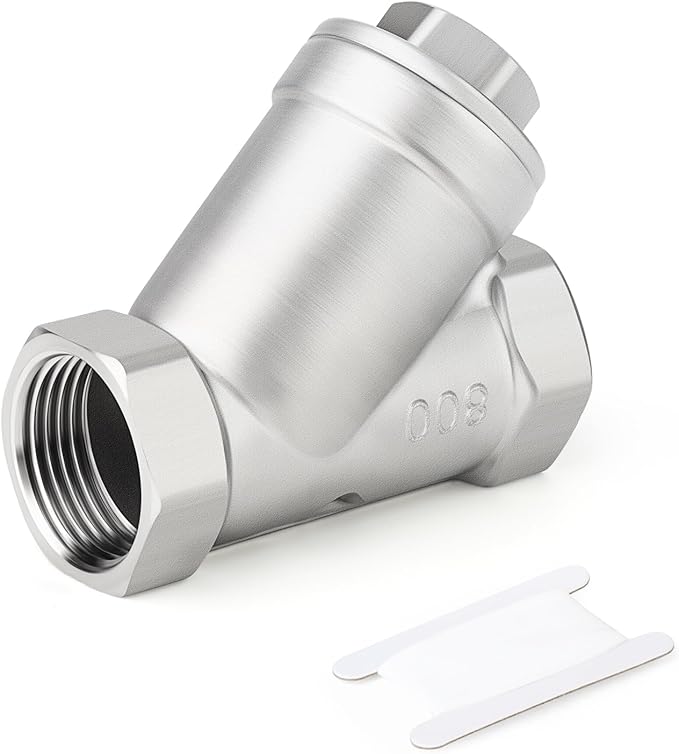

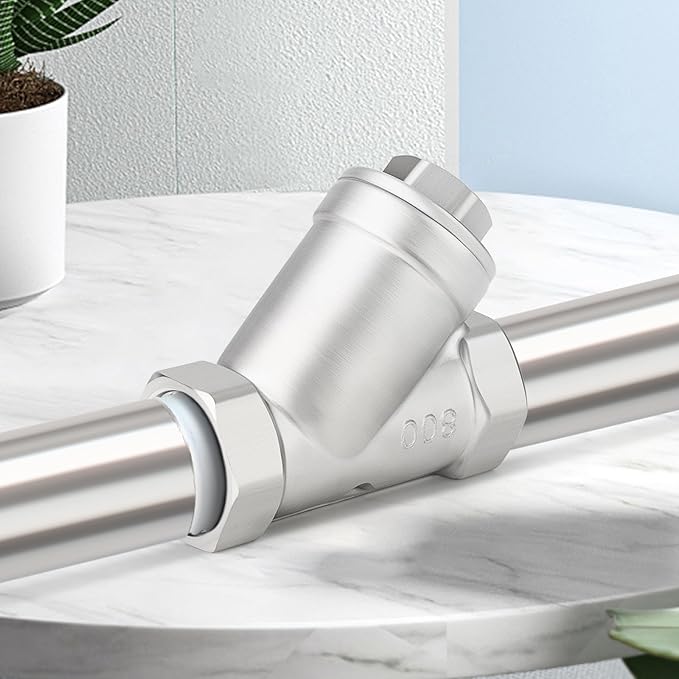

• [ Product Type ] WYE Y Strainer Mesh Filter Valve(3/4" NPT Female) ,for industry connecting pipes or fittings with different end types, diameters, or materials.
• [ Metal ] 304 stainless steel strength and resistance to corrosion.
• [ Working Temperature& Maximum Pressure ] Temperature range from -60 to 450 degrees F.Maximum working pressure is 800PSI.

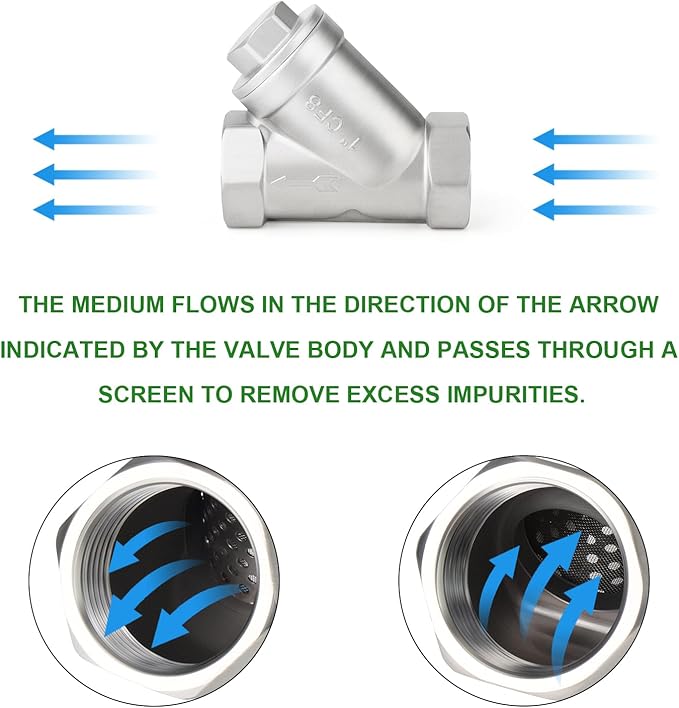

• [ Introduction ] Used to protect piping systems and process equipment from impurities in the fluid and to minimize pressure loss.
• [ Applications ] Widely used in fuel/air/liquid/oil/gas, Filters are primarily used in upstream installations to protect your piping system from impurities.

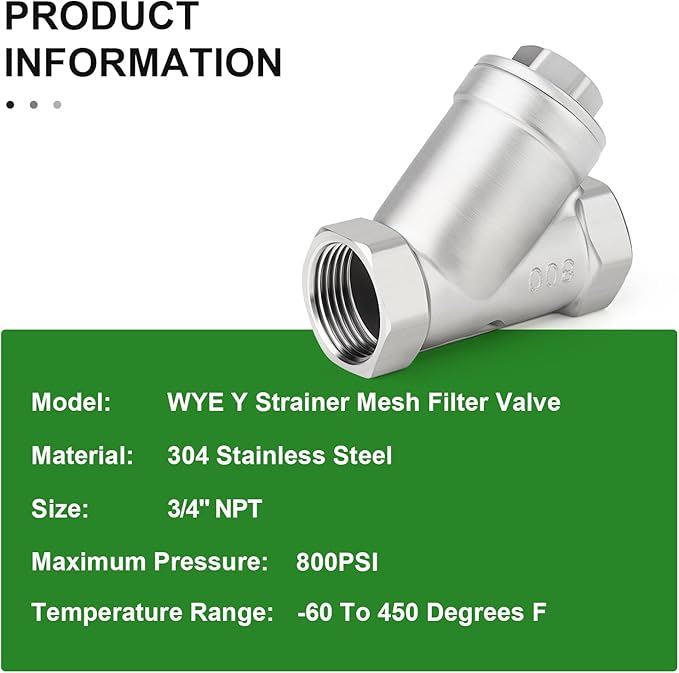

Overview

• Material : Stainless Steel
• Brand : TAISHER
• Exterior Finish : Stainless Steel

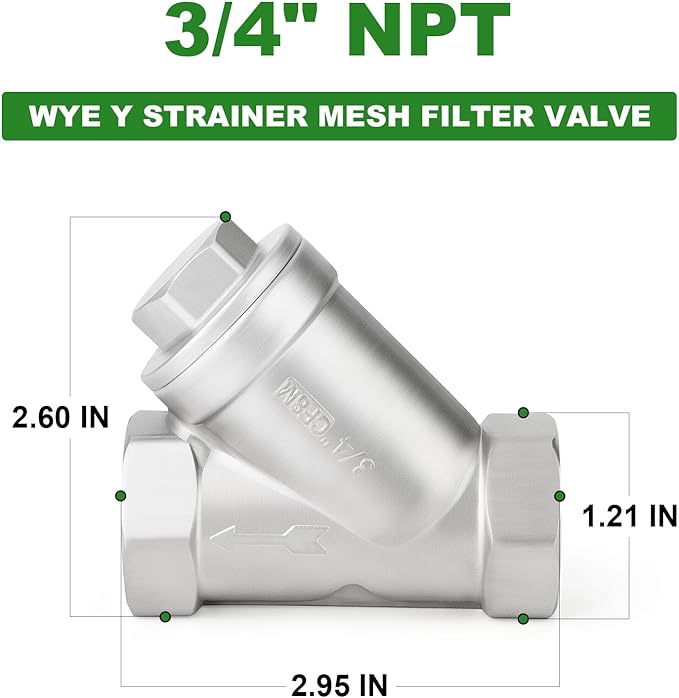

• Inlet Connection Size : 0.75 Inches

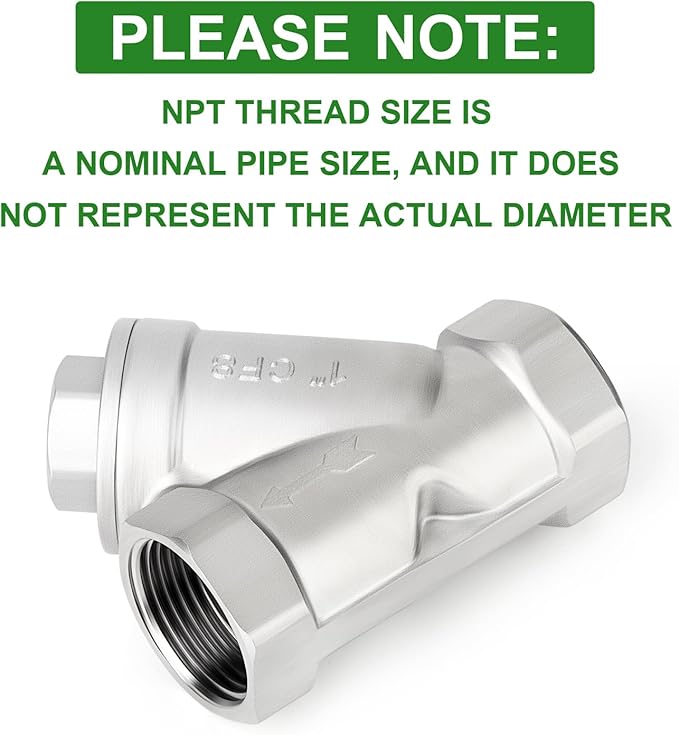

• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : FNPT
• Maximum Operating Pressure : 800 Pound per Square Inch
• Number of Ports : 3
• Outlet Connection Size : 0.75 Inches
• Specification Met : ASME B16.5, CF8
