About This

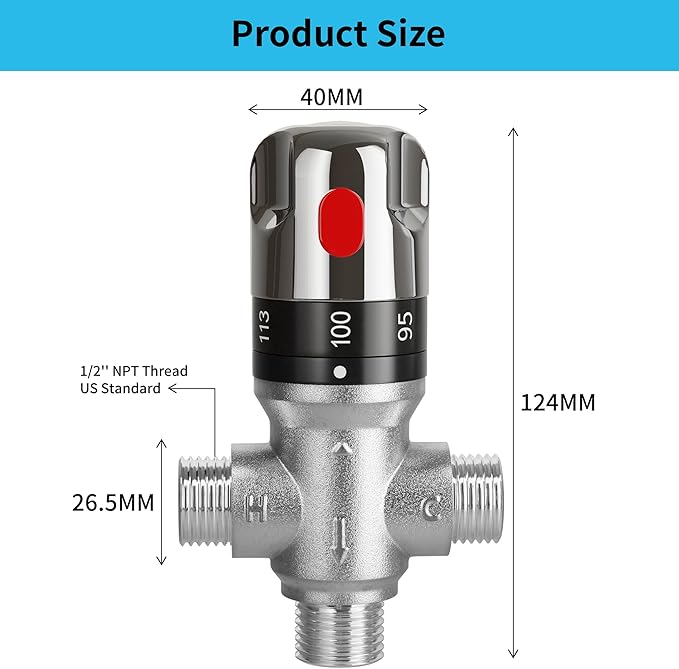

• Specification: US standard 1/2" NPT thread, no adapter required.

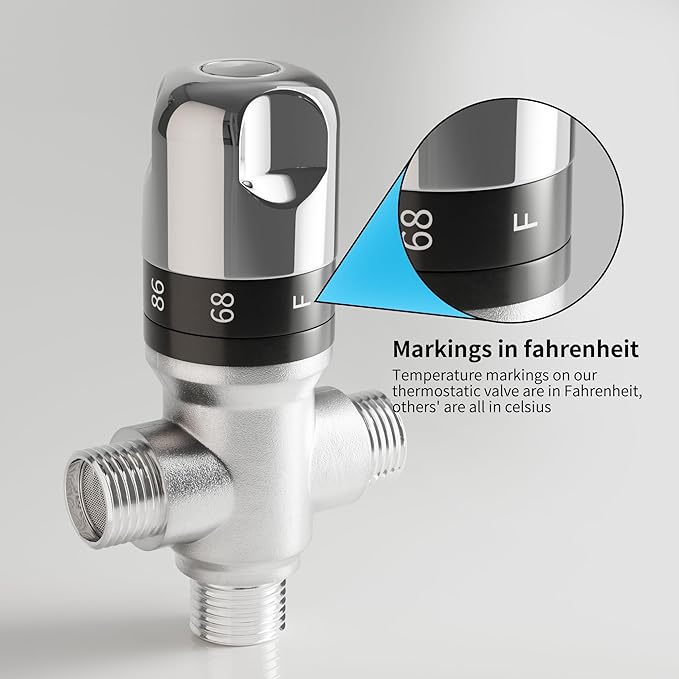

• Temperature Range: Markings in Fahrenheit. Cold water from 39°F -84°F, hot water from 122°F -203°F; Outlet water temperature: 68°F -122°F.
• High Quality: One piece solid brass body ensures no leaks. Electroplated surface technology prevents rust and corrosion.
• Durable Performance: Thermostatic mixing valve has a built-in temperature control valve core, which provides safe anti-scalding function for using.
• Application Scenario: Thermostatic mixing valve is widely used in bathroom shower, solar system, and kitchen faucet to control water temperature. (Tips: If you need a temperature over 100°F, press the red button and rotate the valve.)

Overview

• Material : Brass
• Brand : FUGO
• Item dimensions L x W x H : 3 x 3 x 2 inches
• Exterior Finish : Brass, Chrome
• Inlet Connection Size : 0.5 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : NPT
• Number of Ports : 2
• Outlet Connection Size : 0.5 Inches
• Specification Met : ASME
