About This

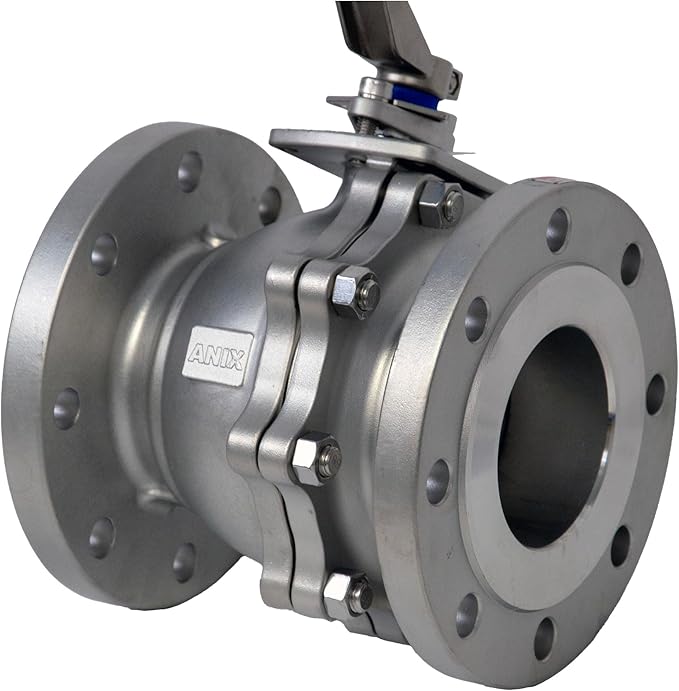

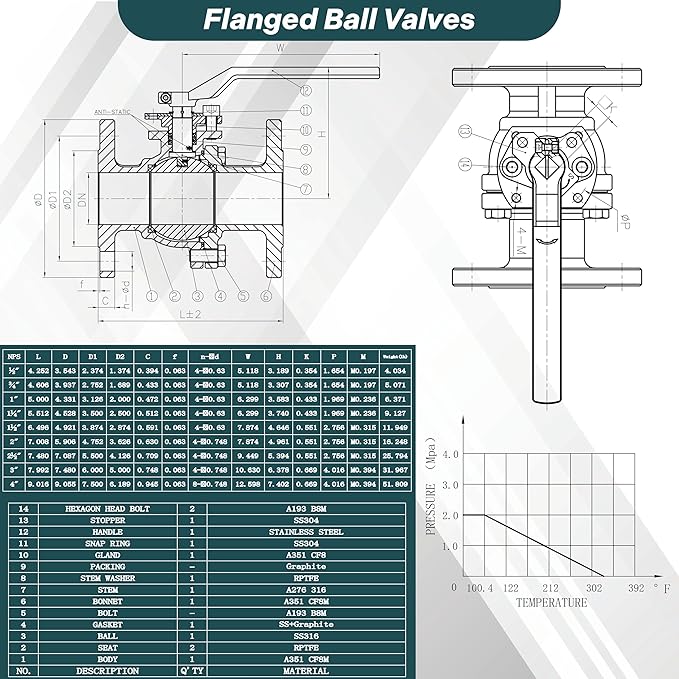

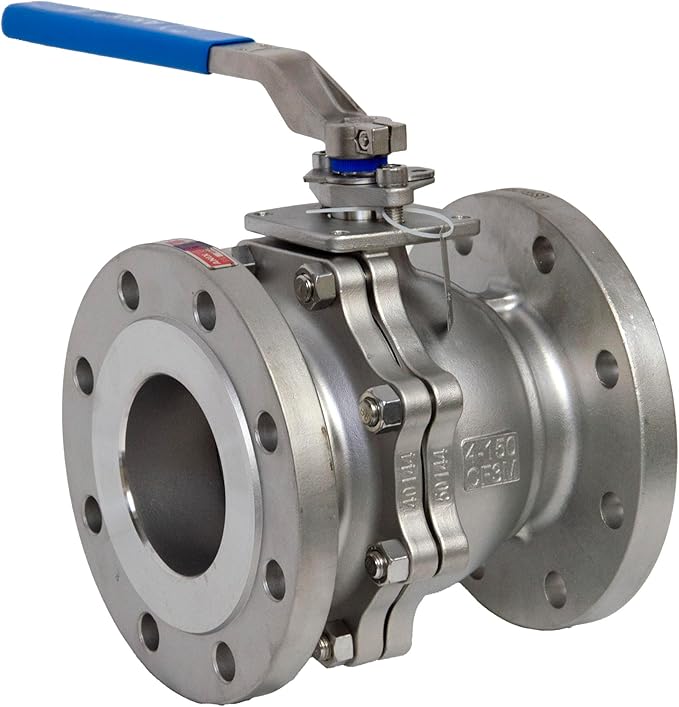

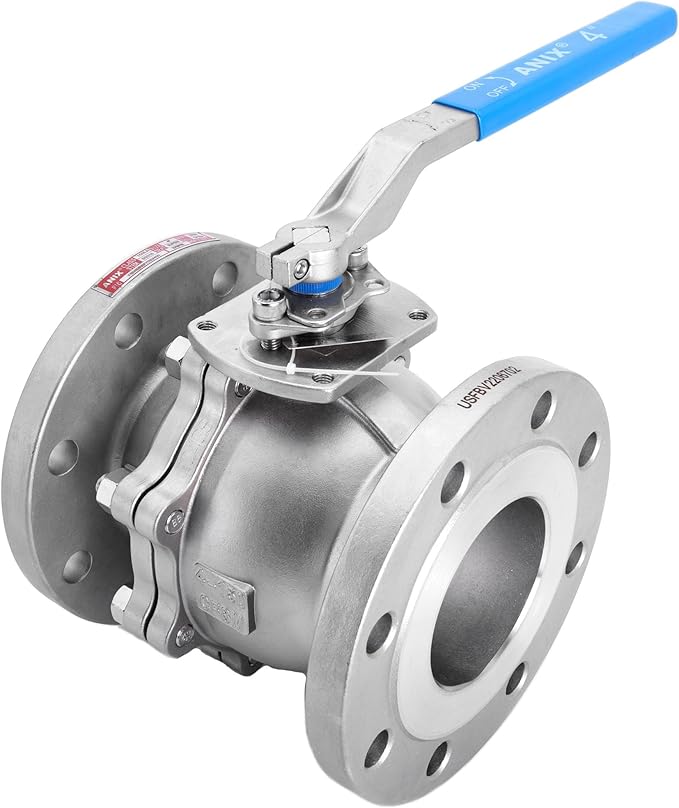

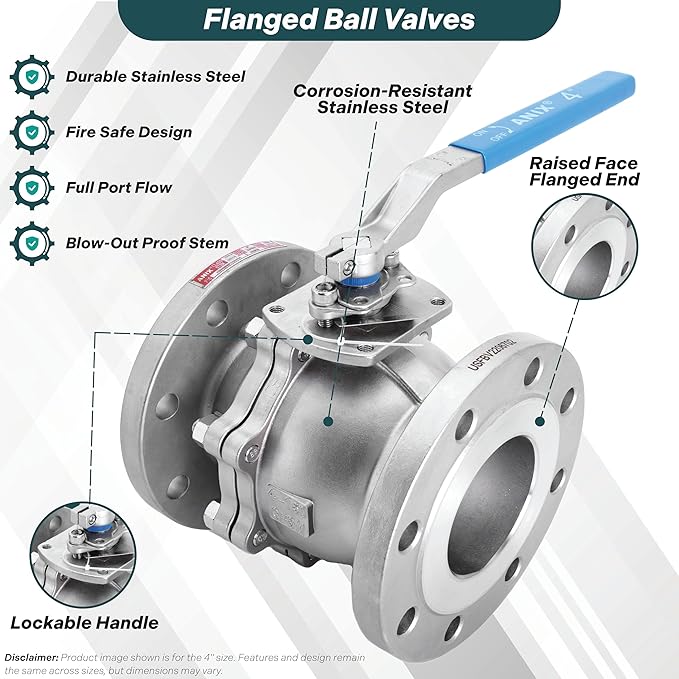

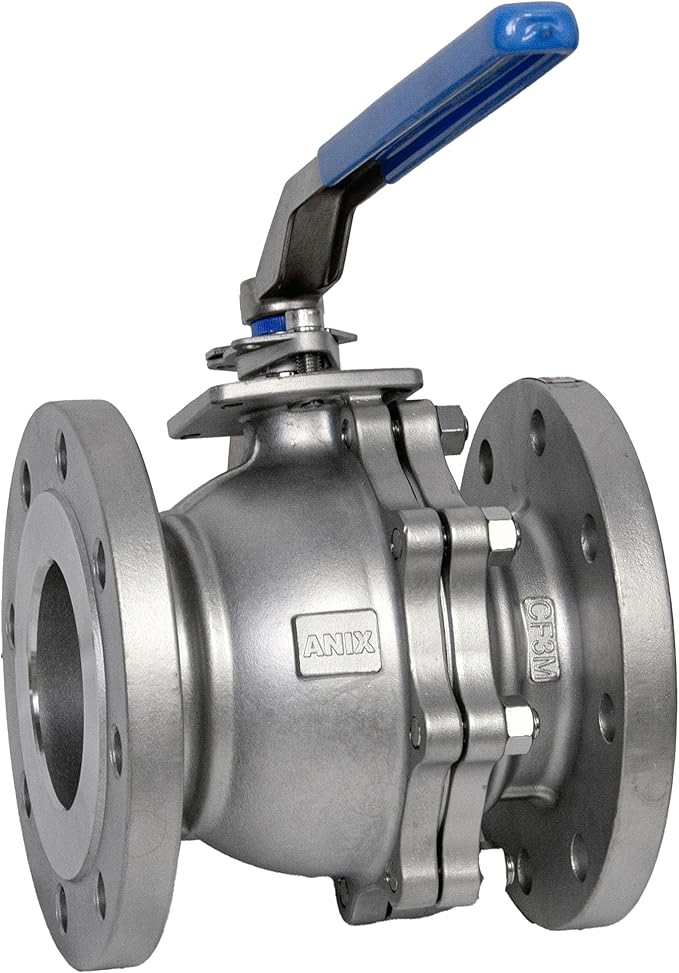

• CF8M SS316 RFFE 2-PC SS Full Port Ball Valve ANSI 150
• CF8M Cast Stainless Steel Body
• Full Port / Full Bore
• SS316 Ball & Stem, RPTFE Seat, Lockable Handle
• Flange End Connection according to ASME B16.5
• Blow-Out-Proof Stem Design, Graphite Packing
• Suitable for Water, Oil, or Gas Medium Application
• Fire Safe and Anti-static Design with R-PTFE seat materials
• Design fully complies with ASME B16.34 and API 607
• Tested and inspected in accordance with API 598

Overview

• Material : Stainless Steel
• Brand : Anix
• Exterior Finish : Stainless Steel
• Inlet Connection Type : Flange
• Specification Met : ANSI 150, API 598, API 607, ASME B16.34, ASME B16.5
• Global Trade Identification Number : 00850058275048
• Manufacturer : Anix
