About This

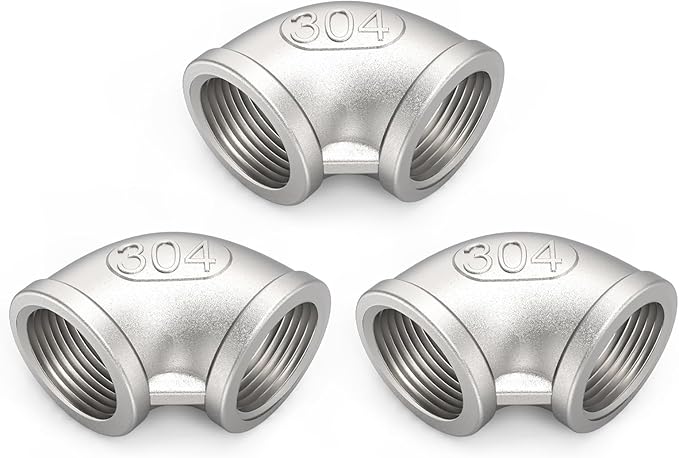

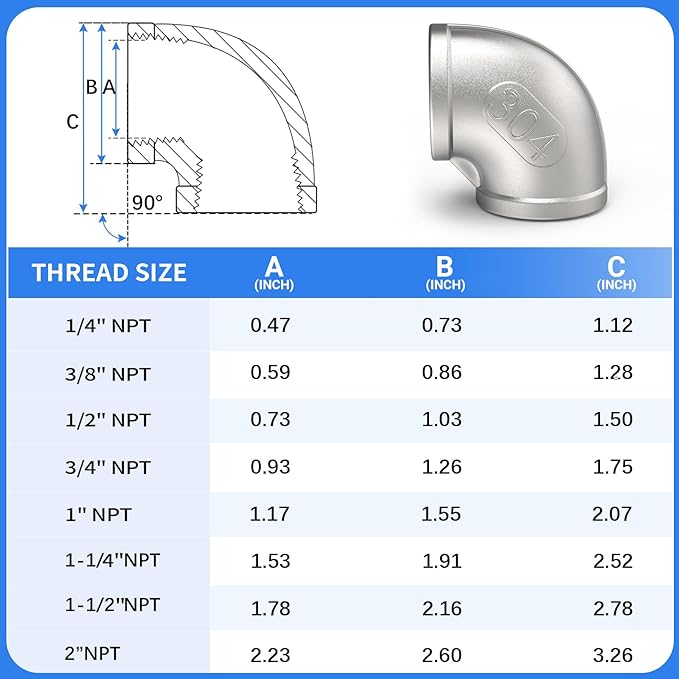

SIZE - 1" NPT Female x 1" NPT Female 90 Degree Elbow. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
MATERIAL - Made of high quality 304 stainless steel, it has excellent oxidation and corrosion resistance, high compressive strength, abrasion resistance, durability, good low temperature toughness, heat resistance and mechanical properties.

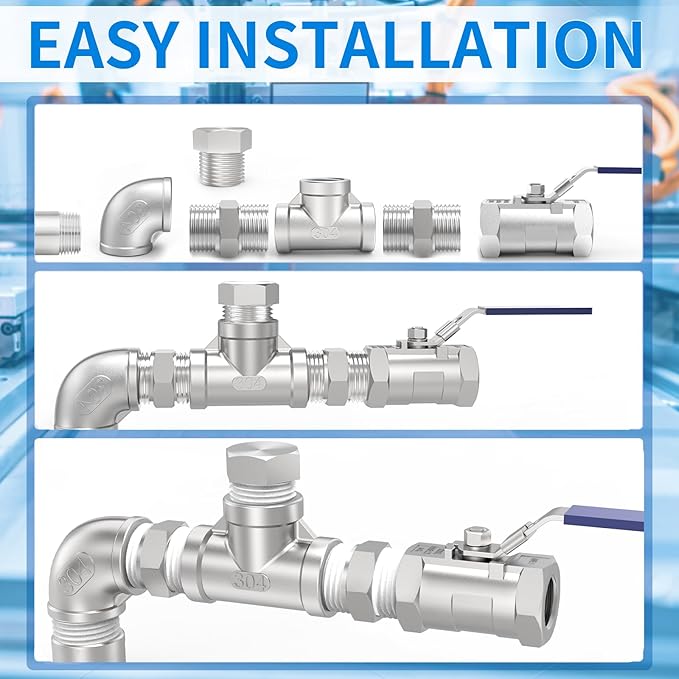

Use - Connects male threaded fittings of the same diameter at an angle of 90° to change the direction of flow between pipes. It is a pipe fitting specially used for pipe connection engineering. It is suitable for most gases, water, oil and corrosive liquids.
WORKING PRESSURE & TEMPERATURE - 225PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)

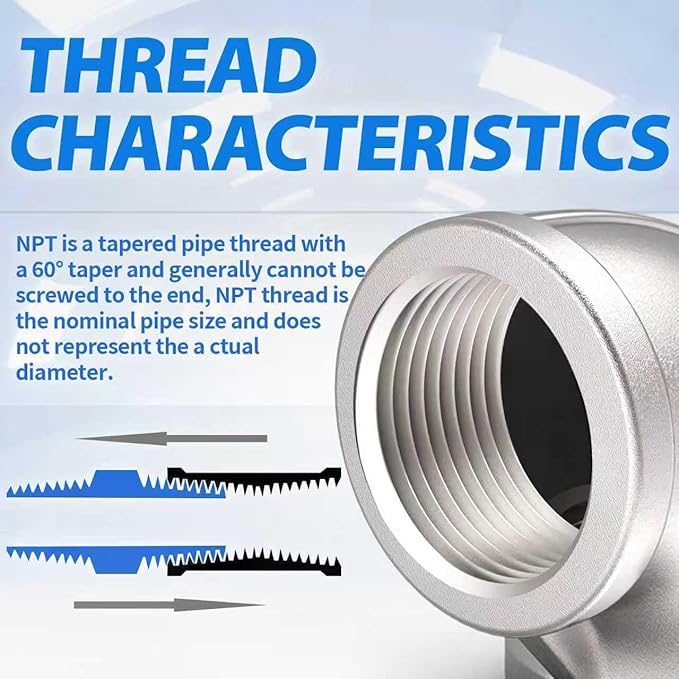

NOTICE - NPT is a tapered pipe thread with a 60° taper and generally cannot be screwed to the end, these 304 stainless steel fittings are lead-free.
