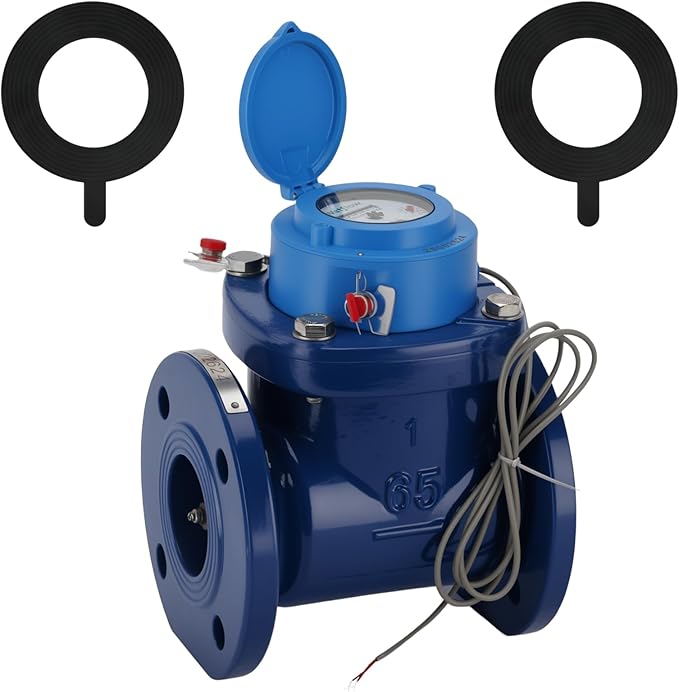

Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）

Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）

$549.43
Skip to product information
Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
  • Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）

Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）

$549.43

About This

  • ACCURATE MONITORING:Cold water meter: ±2% at nominal/intermediate and maximum flow, ±5% at minimum flow rate to transition flow rate
  • Maximum Flow Rate: 160 GPM, Nominal Flow Rate: 25GPM, Minimum Flow Rate: 4GPM. Pressure: 200PSIG Temp:-20 to 150 ℉
  • Horizontal Installation: Horizontal position with dial facing upwards or sideways. It is not recommended to have dial facing downwards. It can also be installed vertically with water flowing upwards.
  • High materials: ABS head 360° rotation. The meter body is made of cast or ductile iron and is epoxy coated.The meter register assembly can be removed for repair orreplacement without disrupting the process flow.

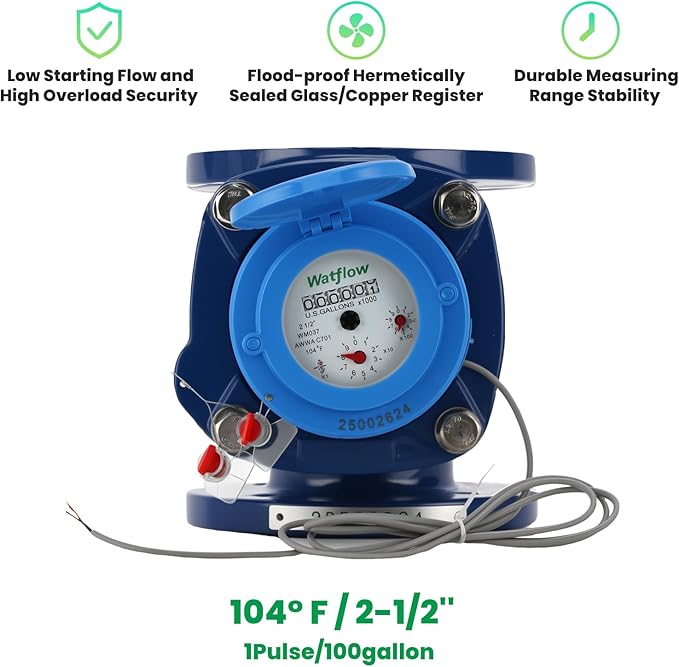

  • Pulse Connection:This is a pulse-emitting device that is magnetically actuated: a reed switch inside a plastic housing closes when a magnet mounted on a gear of the meter enters its sensing proximity, producing a pulse signal.
  • A typical 1.5 meter (59") two-conductor cable uses wires with 3.5 mm outer diameter. One conductor is insulated in red and the other in black. Max Voltage: 24V AC/DC Max Current: 0.01 A. 1GA/100GAL
