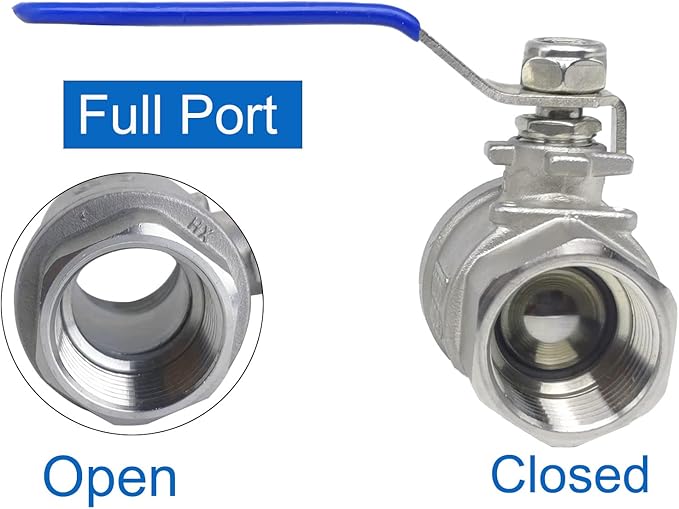

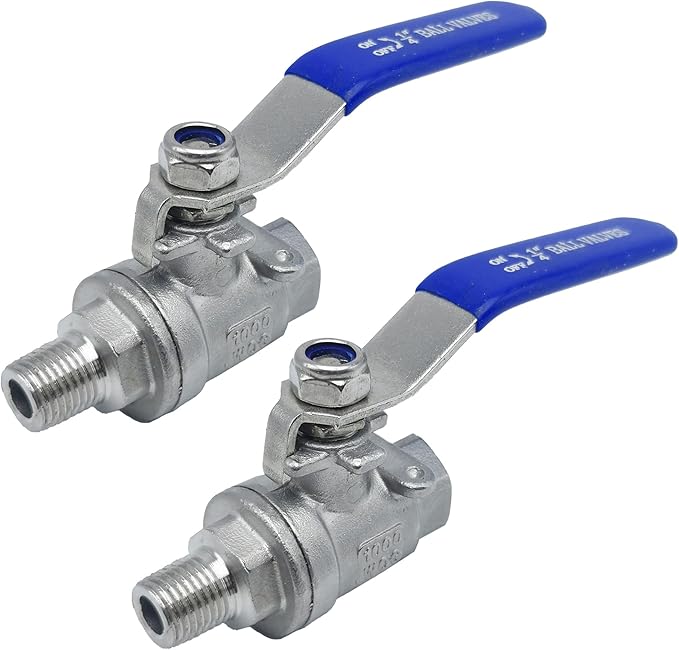

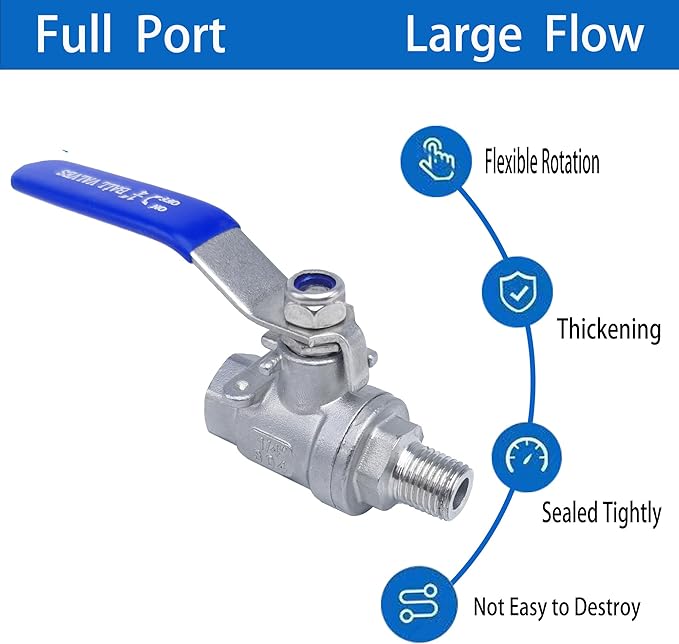

• Size: 1/4" (DN8) Male x Female thread ball valves

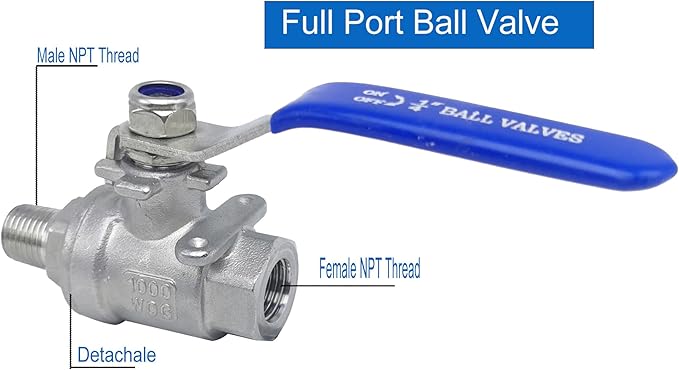

• Serviceable Valve: The valve body is composed of 2 parts and Can be taken apart via threads, Male x Female NPT Ports

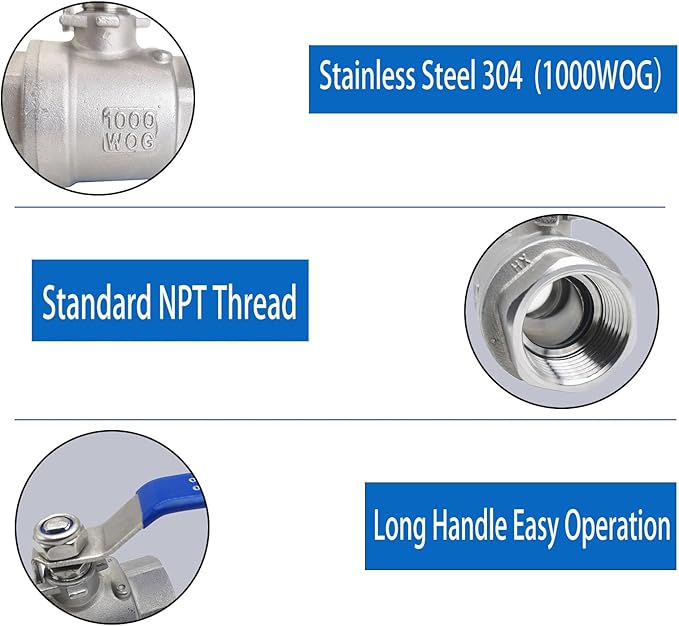

• Material: 304 stainless steel, Corrosion-resistant, long-life with blue handle and PTFE leak-proof gasket
• Wide application: The operation is very convenient and flexible, widely used in petrochemical, natural gas, water treatment, food and beverage and many other industries
• Nominal Working Pressure: 1000WOG, Max 1000psi, Temp Range:-60°F to 450°F

Overview

• Material : Stainless Steel
• Brand : POTONZ

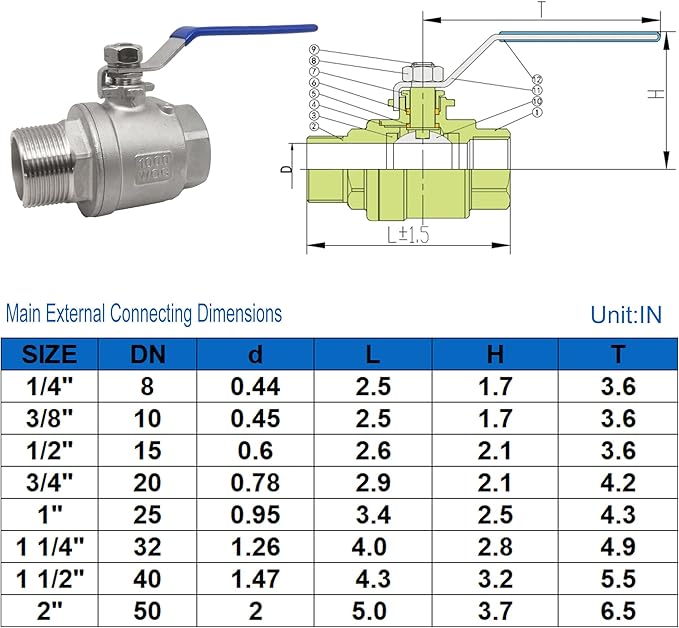

• Item dimensions L x W x H : 5 x 2.6 x 1.4 inches
• Exterior Finish : Stainless Steel
• Inlet Connection Size : 1/4 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : FNPT
• Maximum Operating Pressure : 1000 Pound per Square Inch
• Number of Ports : 2
• Outlet Connection Size : 1/4 Inches
