Super Quiet Split Condensate Pump - Built in realiable and ultra-low noise diaphragm pump and fully filled with adhesive minimize its vibration to produce less noise. The ultra-low working noise ensures that it will not disturb you even when installed under the air conditioning at the bedside.15 dB ( 3 FT Distance Test ) noise will be completely covered by the wind of the air conditioner, and you may not even notice it working.
Ultra-thin Design with 3 Working Indicator Lights - The slim body, tough casing lines and integrated design make this condensate pump easier to install and more aesthetically pleasing compared to other small split condensate pumps. Three working indicator lights can clearly inform you of the working status of the pump. User friendly design makes it easy to install and use.

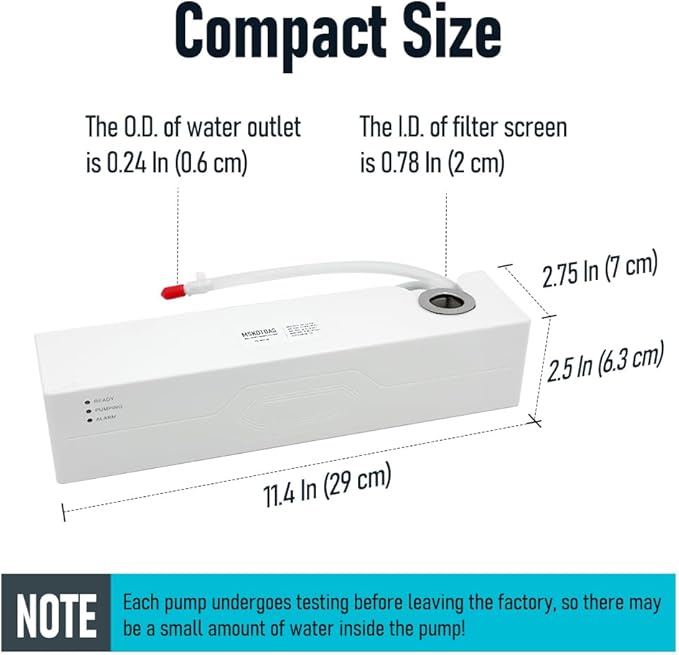

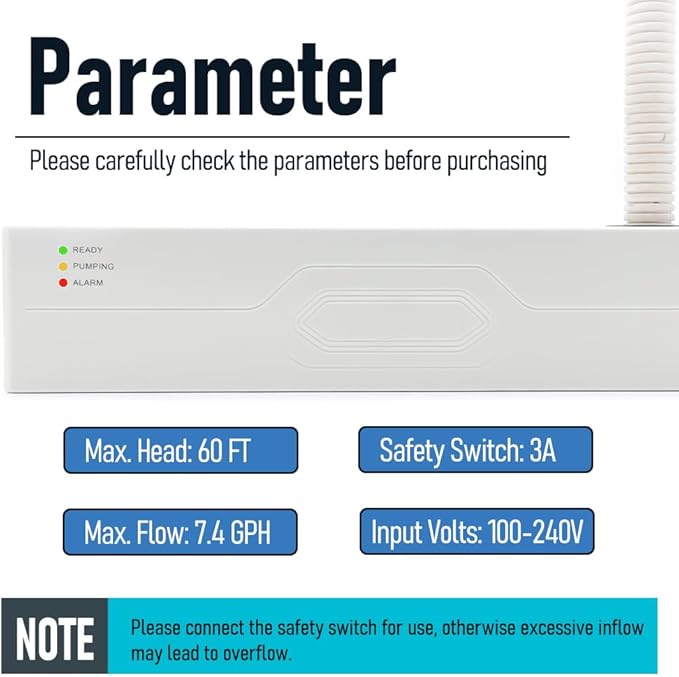

Configuration Parameter - Input Volts: 100-240V AC 50/60Hz | Max.Head: 60 FT Vertical / 200 FT Horizontal | Max.Flow Rate: 7.4 GPH ( 28L/h ) @ 3 FT head | Noise level: ＜15dB(A) @ 3 FT Distance | Water Tank Capacity: 4.1 fl oz (120ml) | Fit Max.unit output: ≈ 8kw / 30000 BTU/h | Safety switch: 3A (Normally closed) | Max. Water Temperature: 145℉ | Recommended Drainage Hose I.D.: 1/4’’ ( 6mm ) | Class: II appliance | Rated：continuous; Fully potted：√ | L×W×H: 11.4’’×2.75’’×2.5’’.

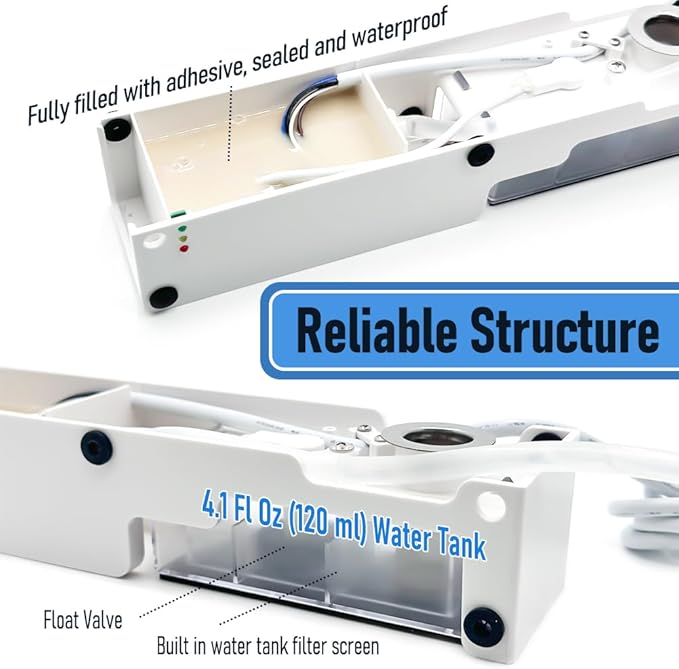

Multiple Protections - Not only is there a stainless steel dirt filter inside the water tank, but we also have an additional stainless steel filter at the inlet of the water tank. Completely prevent visible particles from entering the pump and causing damage, prolong the service life of the pump and reduce the difficulty of cleaning. And the pump can prevent backflow in both directions, further reducing the possibility of dirt accumulation inside the pump.

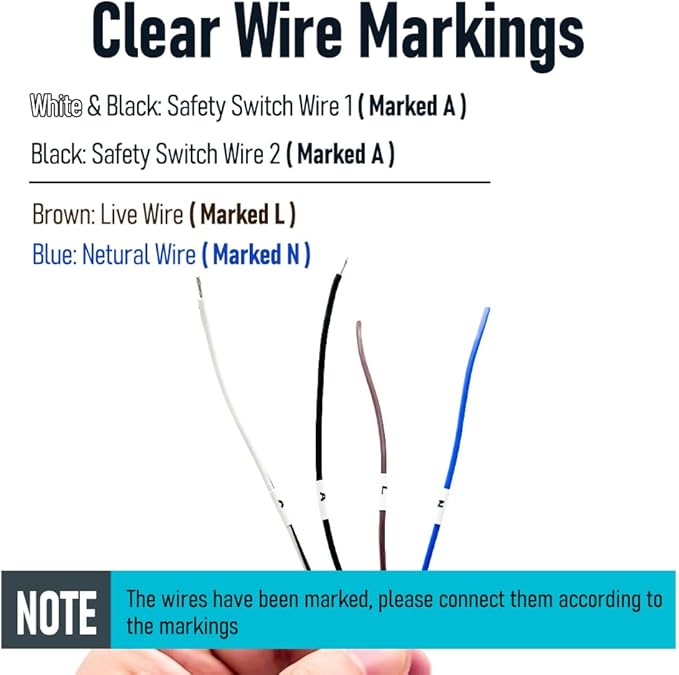

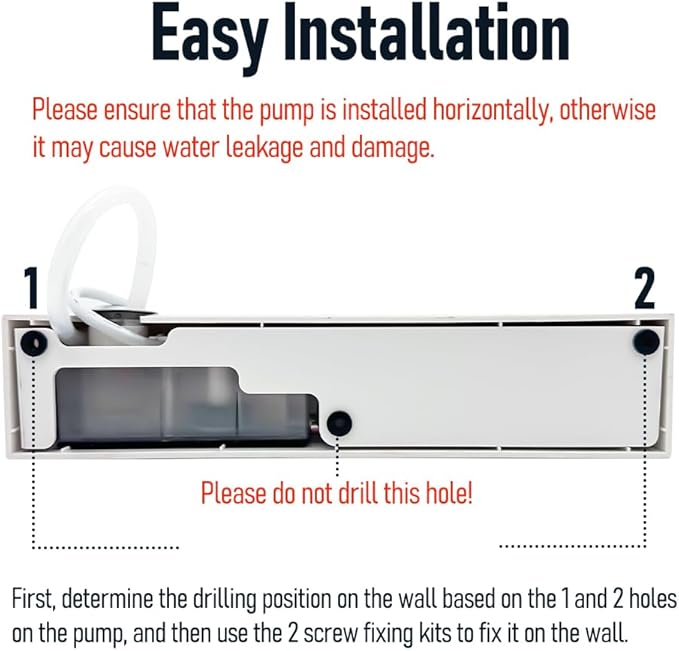

Easy Installation - (1) Remove the casing of the pump and mark 3 corresponding screw holes on the wall (Horizontal installation!!!); (2) Drill 2 holes and knock in 2 drywall anchors, then fix the pump to the hole position with screws; (3) Wire the pump power and safety switch wires to the air conditioning unit (Ensure that the AC power is disconnected), or wire to a independent plug. (4) Finally, insert the drainage tube of the AC unit into the filter at the inlet of the pump.
