About This

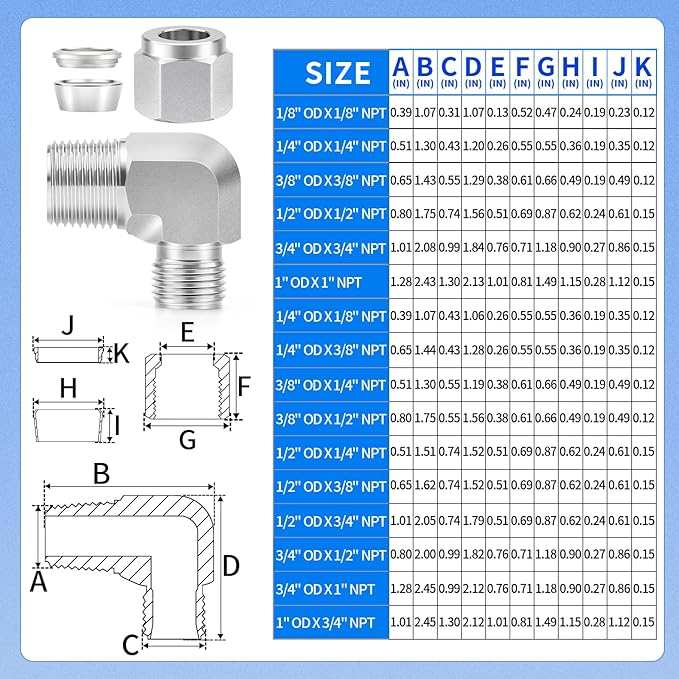

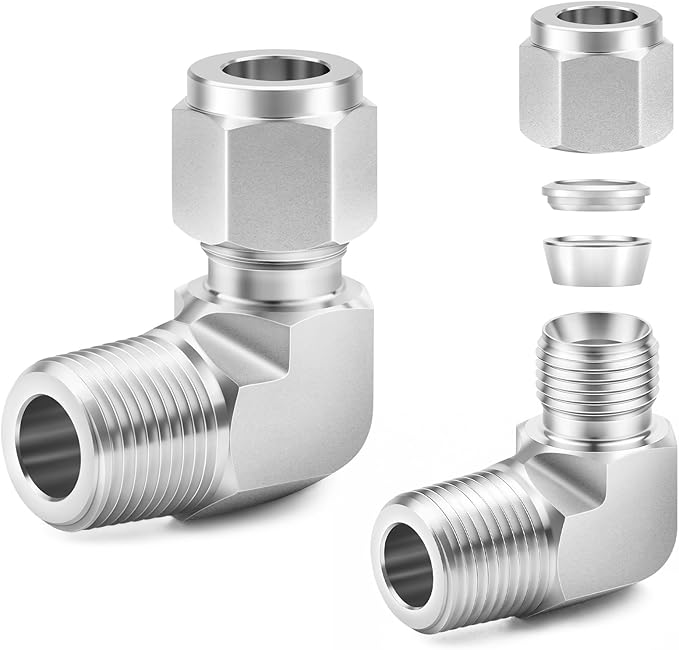

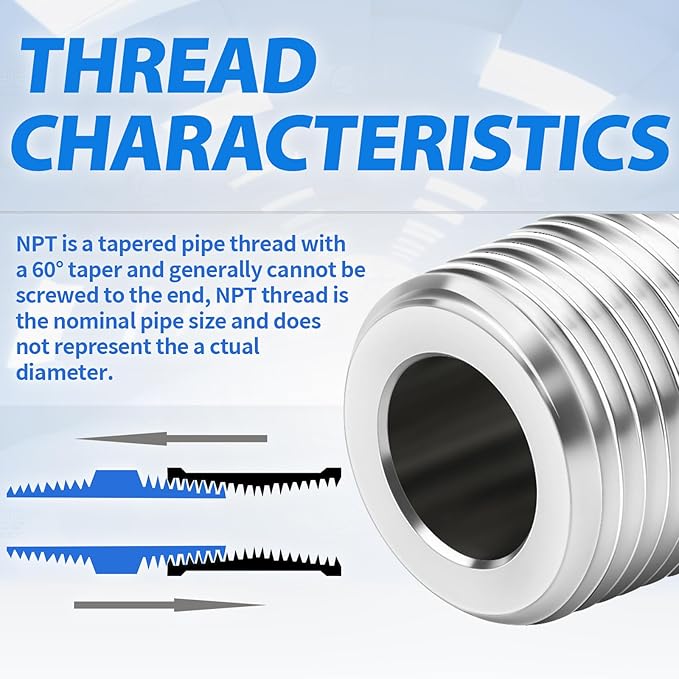

SIZE - 3/8" Tube OD x 3/8" NPT Male, 90 Degree Elbow Compression Tube Fitting mainly consists of a fitting body with a 24 degree tapered hole, a Double Ferrule Ring with a sharp inner edge, and a nut for compression. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
MATERIAL - Made of high quality 304 stainless steel, it has excellent oxidation and corrosion resistance, high compressive strength, abrasion resistance, durability, good low temperature toughness, heat resistance and mechanical properties.

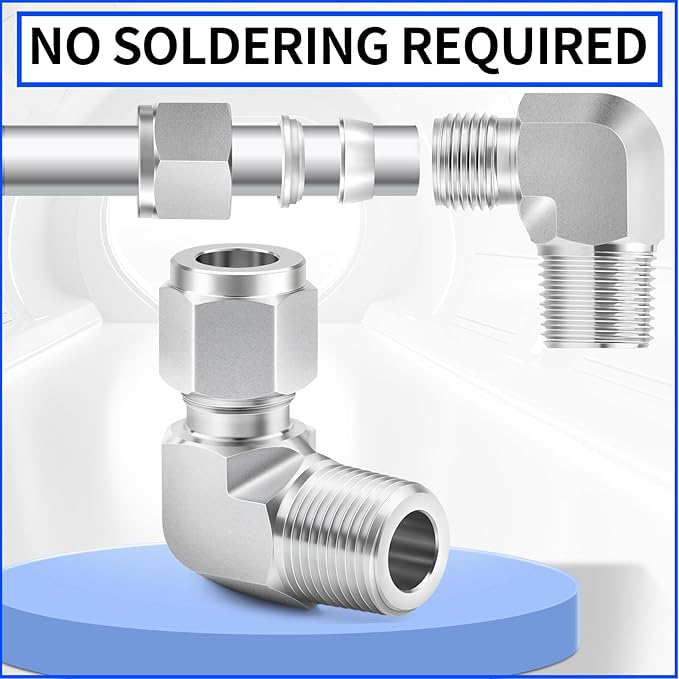

Use - Suitable for oil, gas, water and other non-corrosive or corrosive pipeline systems, temperature and pressure resistance, good sealing and repeatability, no need for welding and flaring tools, easy disassembly, installation and maintenance, etc.
WORKING PRESSURE & TEMPERATURE - 1400PSI maximum working pressure, temperature range -328°F to +392°F (-200°C to +200°C)

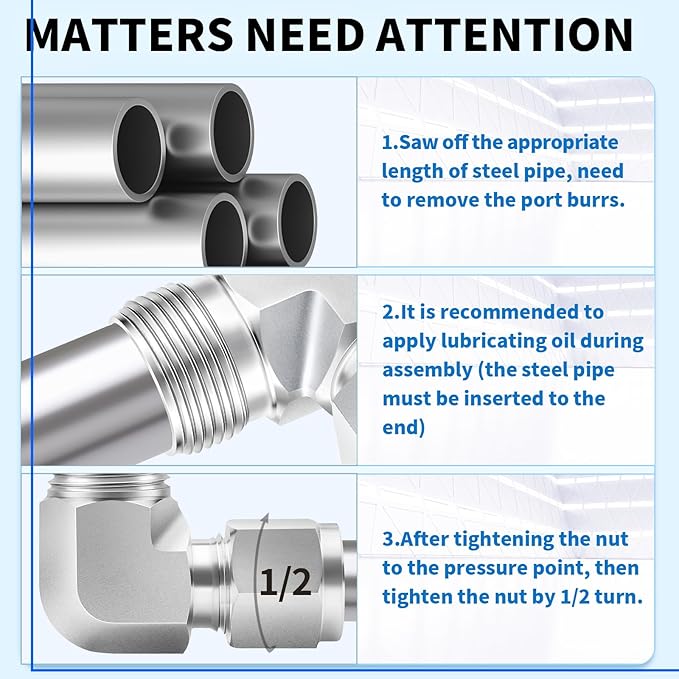

WORKING PRINCIPLE - Compression Tube Fitting is to compress the ferrule by thread interlocking, and the two ends of the inner diameter of the ferrule tightly wrap the tube due to radial shrinkage, which plays a sealing role and realizes the sealing and tightening effect between the joint and the tube.
