About This

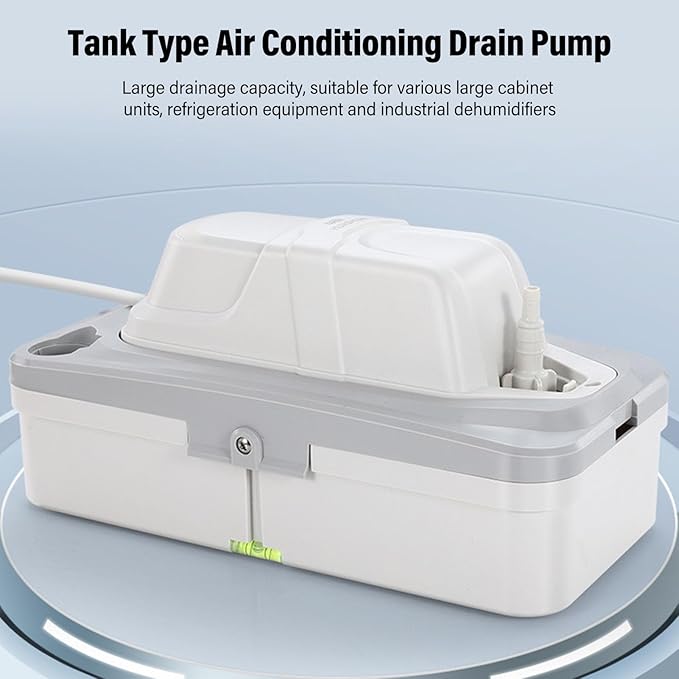

Efficient Condensate Removal: This compact condensate pump has a maximum head of 10 meters and a maximum flow rate of 320L/h. It is suitable for less 20H horsepower air conditioners, dehumidifiers, commercial ice makers, boilers, and furnaces, catering to the drainage needs of most residential and commercial
Safe Switch and Alert: There is no need to manually empty the water Pond; it automatically detects the water level and pumps water to prevent overflow. If the water intake speed exceeds the drainage speed, the built in alert will sound. You can also connect the safe switch to the HVAC system to automatically shut off the appliance and prevent water overflow

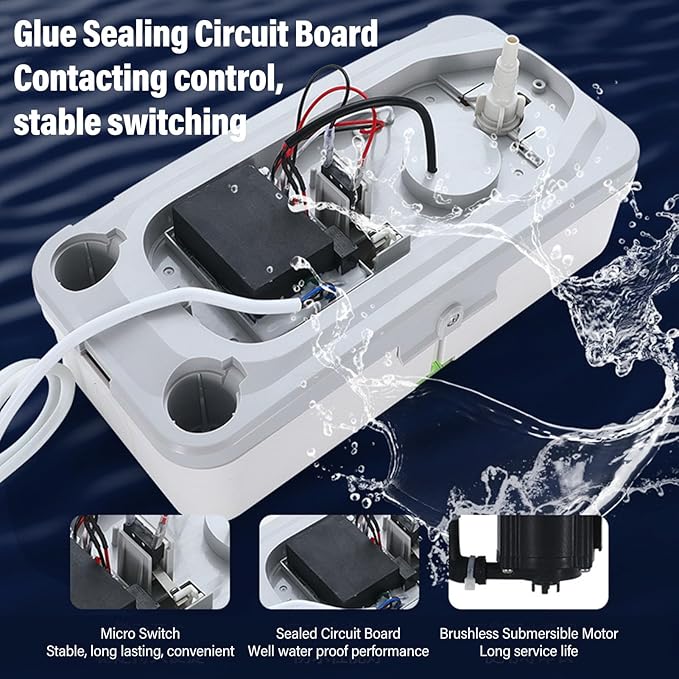

Probe and Micro Switch: Utilizing dual control system with probe and micro switch, it provides double security for start stop control. During normal work, the micro switch senses the water level. If the micro switch encounters an obstruction and cannot move up and down normally, the probe will take over the start stop function

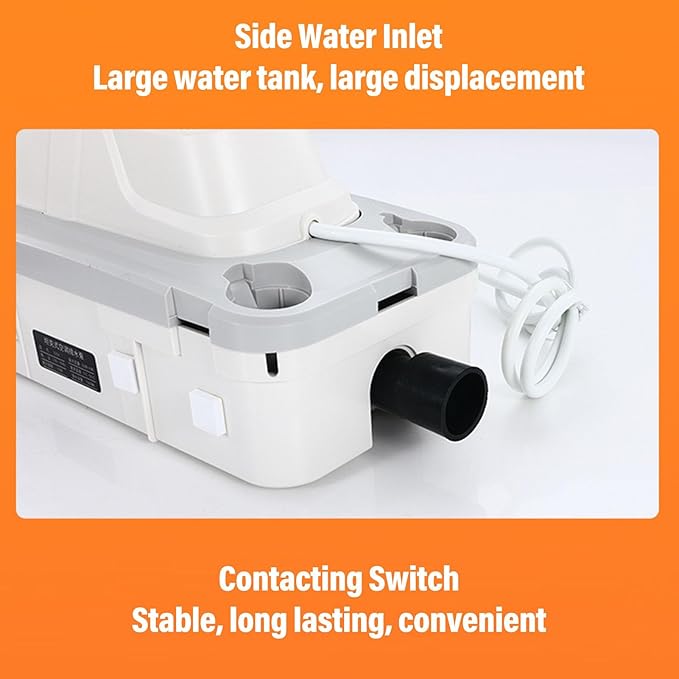

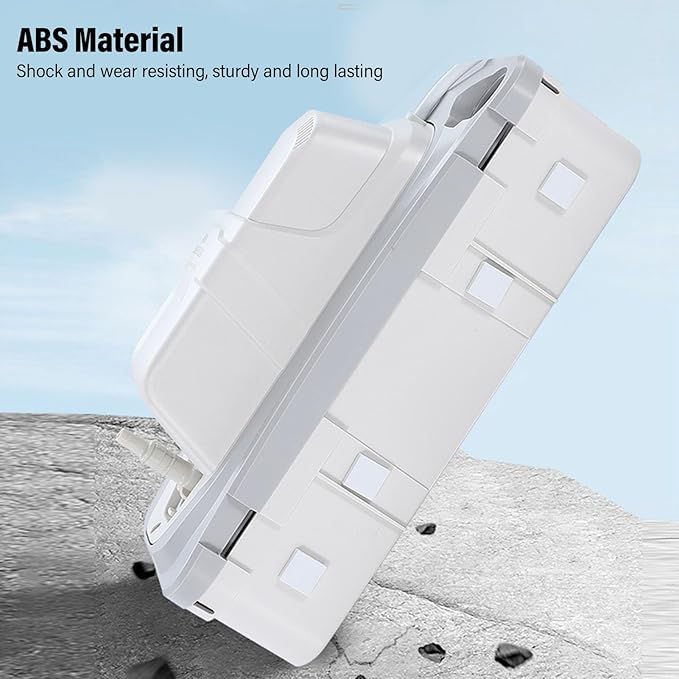

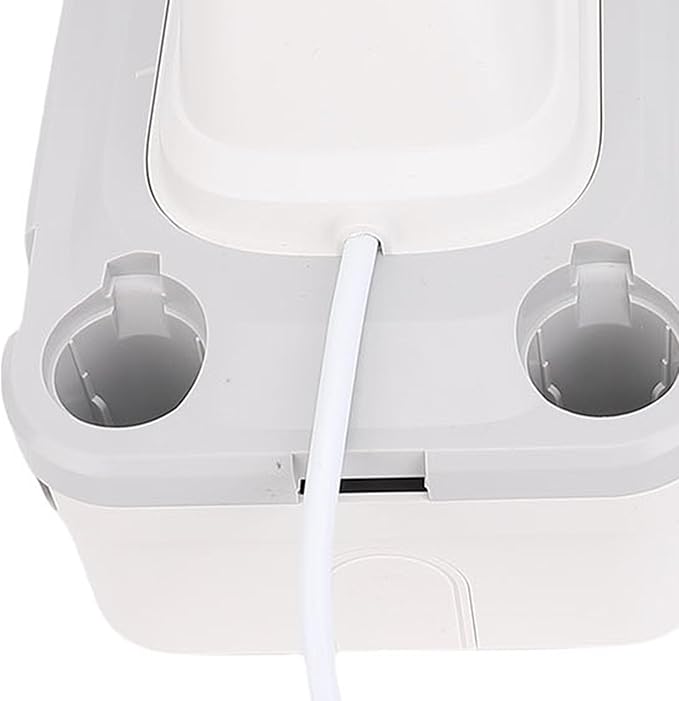

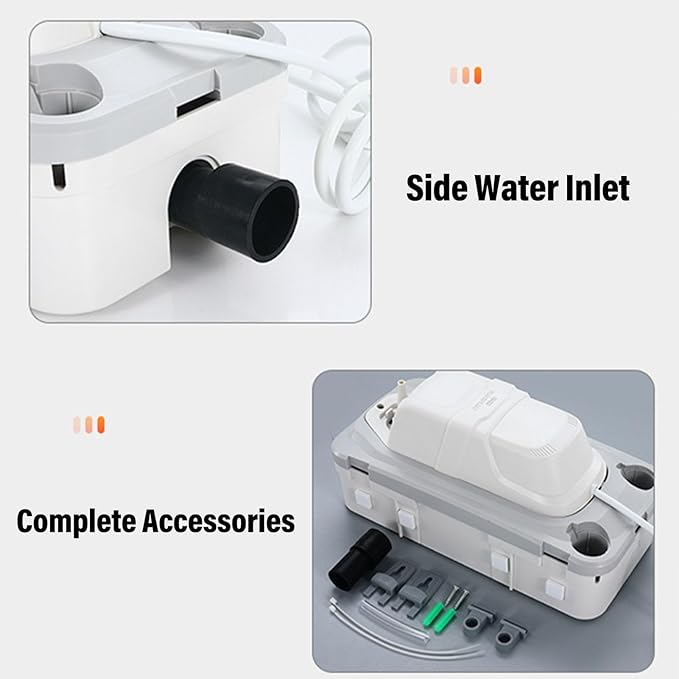

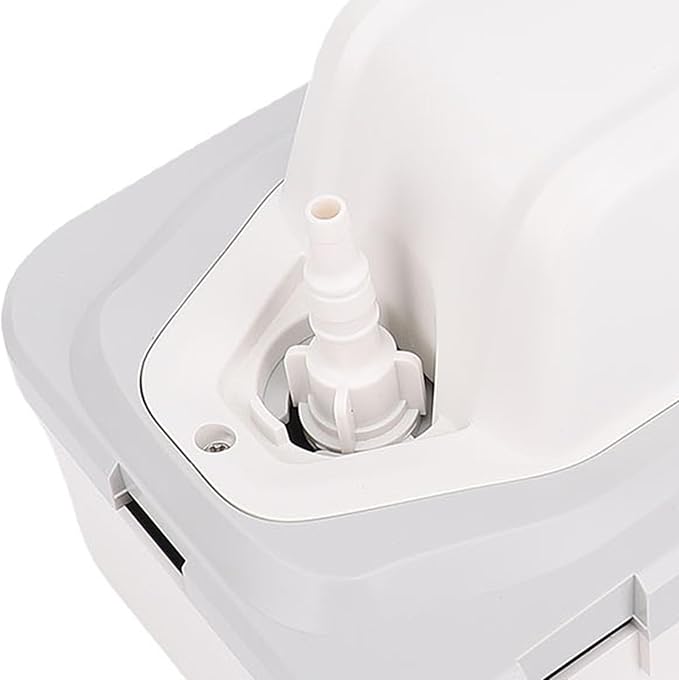

User Friendly: Equipped with 1500ml water Pond, made of plastic material, it is easy to clean and prevents grime buildup and clogging. Two 1.1 inch water inlets allow for connection to multiple devices. The 2/5 inch outer diameter barbed outlet, built in check valve, can be connected to pipes with an inner diameter ranging from 7/16 to 2/5 inch, with a maximum drainage temperature of 60℃
Easy Installation and Use: Its simple design enables quick installation; just ensure the condensate pump is installed horizontally. The brown and blue wires can be connected for normal work, with automatic water level sensing for start stop control. The black signal wire can be connected in series on the live wire with a current less than 3A, or it can be left unconnected and still function normally
