About This

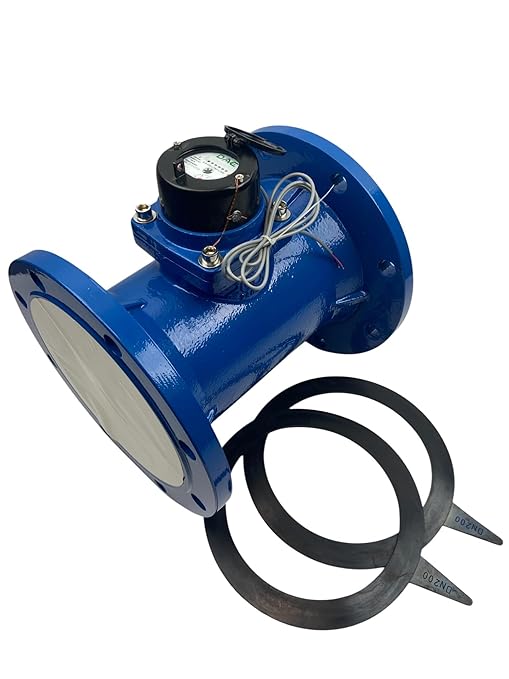

• Suitable for irrigation, agriculture and waste water application. Paddle wheel design resists blockage and damage to meter from debris in water. Horizontal mount with dial facing upwards or sideways. It is not recommended to have dial facing downwards. It can also be installed vertically with water flowing upwards.

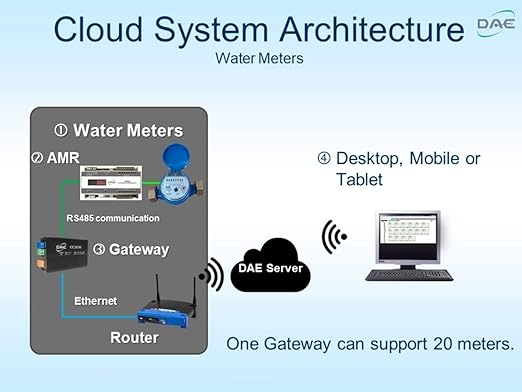

• Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

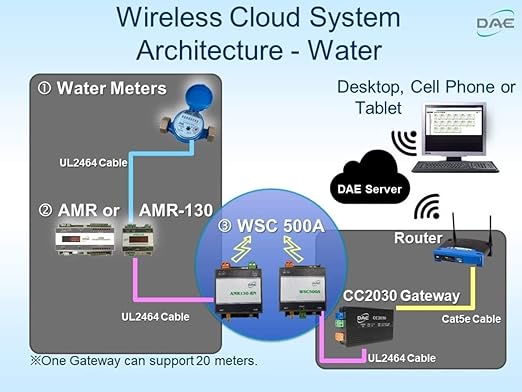

• For existing building, hard to draw cable between AMR130AN (close to 1 water meter) and CC2030 (close to your router), please choose 1 CC2030 KIT + AMR130-RN KIT + WSC500A to connect them wirelessly. (3rd picture)

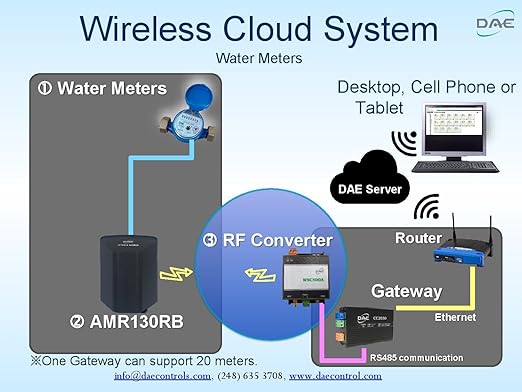

• For remotely monitoring a water meter in an area without power like the one in the farm, please choose CC2030 KIT+AMR130RB+WSC500A to connect Battery-Powered AMR130RB (close to water meter) and CC2030 (close to your router) wirelessly. (7th picture)

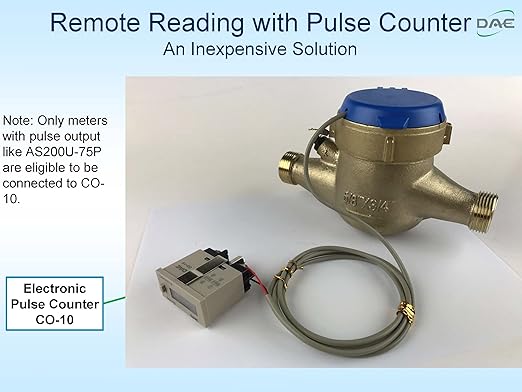

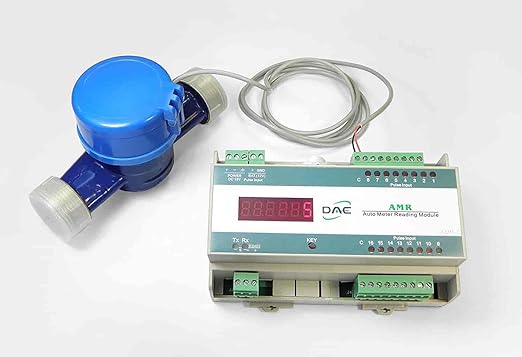

• Ready for use with CO-10 KIT or CO-10 Electronic Pulse Counter (6th picture)- An inexpensive remote reading solution. Ready for use with DAE AMR130 and AMR for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C701 and ISO 4064. for clean City water only.
